SKU#: 10306

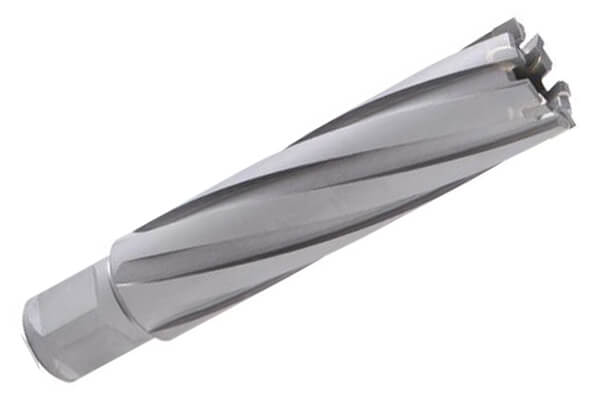

75mm Cutting Depth Weldon Shank
These carbide cutting tools are used to drill in hardened materials such as stainless steels and high tensile strength steel such as railway tracks.
FEATURE:
* TCT ANNULAR CUTTER with unique types geometry and random-space tips provide clearly cutting, fast feed rate, less vibration, smooth hole surface and long tool life, the effective of drilling is much better and quicker than the common drills.
* TCT ANNULAR CUTTER can be used on magnetic drilling presses, drilling machine and electric drill in rotary mode and all kinds of drilling presses with all types of shank.
SPECIFICATION:
| Art No. | Diameter (mm) | Shank Diameter (mm) | Cutting depth (mm) |
| 10306018 | 18 | 19.05 | 75 |
| 10306019 | 19 | 19.05 | 75 |
| 10306020 | 20 | 19.05 | 75 |
| 10306021 | 21 | 19.05 | 75 |
| 10306022 | 22 | 19.05 | 75 |
| 10306023 | 23 | 19.05 | 75 |
| 10306024 | 24 | 19.05 | 75 |
| 10306025 | 25 | 19.05 | 75 |
| 10306026 | 26 | 19.05 | 75 |
| 10306027 | 27 | 19.05 | 75 |
| 10306028 | 28 | 19.05 | 75 |
| 10306029 | 29 | 19.05 | 75 |
| 10306030 | 30 | 19.05 | 75 |
| 10306031 | 31 | 19.05 | 75 |
| 10306032 | 32 | 19.05 | 75 |
| 10306033 | 33 | 19.05 | 75 |
| 10306034 | 34 | 19.05 | 75 |
| 10306035 | 35 | 19.05 | 75 |
| 10306036 | 36 | 19.05 | 75 |
| 10306037 | 37 | 19.05 | 75 |
| 10306038 | 38 | 19.05 | 75 |
| 10306039 | 39 | 19.05 | 75 |
| 10306040 | 40 | 19.05 | 75 |
| 10306041 | 41 | 19.05 | 75 |
| 10306042 | 42 | 19.05 | 75 |
| 10306043 | 43 | 19.05 | 75 |
| 10306044 | 44 | 19.05 | 75 |
| 10306045 | 45 | 19.05 | 75 |
| 10306046 | 46 | 19.05 | 75 |
| 10306047 | 47 | 19.05 | 75 |
| 10306048 | 48 | 19.05 | 75 |
| 10306049 | 49 | 19.05 | 75 |
| 10306050 | 50 | 19.05 | 75 |
| 10306051 | 51 | 19.05 | 75 |
| 10306052 | 52 | 19.05 | 75 |
| 10306053 | 53 | 19.05 | 75 |
| 10306054 | 54 | 19.05 | 75 |
| 10306055 | 55 | 19.05 | 75 |
| 10306056 | 56 | 19.05 | 75 |
| 10306057 | 57 | 19.05 | 75 |
| 10306058 | 58 | 19.05 | 75 |
| 10306059 | 59 | 19.05 | 75 |
| 10306060 | 60 | 19.05 | 75 |
| 10306061 | 61 | 31.75 | 75 |
| 10306062 | 62 | 31.75 | 75 |
| 10306063 | 63 | 31.75 | 75 |
| 10306064 | 64 | 31.75 | 75 |
| 10306065 | 65 | 31.75 | 75 |
| 10306066 | 66 | 31.75 | 75 |
| 10306067 | 67 | 31.75 | 75 |
| 10306068 | 68 | 31.75 | 75 |
| 10306069 | 69 | 31.75 | 75 |
| 10306070 | 70 | 31.75 | 75 |
| 10306071 | 71 | 31.75 | 75 |
| 10306072 | 72 | 31.75 | 75 |
| 10306073 | 73 | 31.75 | 75 |
| 10306074 | 74 | 31.75 | 75 |
| 10306075 | 75 | 31.75 | 75 |
| 10306076 | 76 | 31.75 | 75 |
| 10306077 | 77 | 31.75 | 75 |
| 10306078 | 78 | 31.75 | 75 |
| 10306079 | 79 | 31.75 | 75 |
| 10306080 | 80 | 31.75 | 75 |
| 10306081 | 81 | 31.75 | 75 |
| 10306082 | 82 | 31.75 | 75 |
| 10306083 | 83 | 31.75 | 75 |
| 10306084 | 84 | 31.75 | 75 |
| 10306085 | 85 | 31.75 | 75 |
| 10306086 | 86 | 31.75 | 75 |
| 10306087 | 87 | 31.75 | 75 |
| 10306088 | 88 | 31.75 | 75 |
| 10306089 | 89 | 31.75 | 75 |
| 10306090 | 90 | 31.75 | 75 |
| 10306091 | 91 | 31.75 | 75 |
| 10306092 | 92 | 31.75 | 75 |
| 10306093 | 93 | 31.75 | 75 |
| 10306094 | 94 | 31.75 | 75 |
| 10306095 | 95 | 31.75 | 75 |
| 10306096 | 96 | 31.75 | 75 |
| 10306097 | 97 | 31.75 | 75 |
| 10306098 | 98 | 31.75 | 75 |
| 10306099 | 99 | 31.75 | 75 |
| 10306100 | 100 | 31.75 | 75 |
