SKU#: 3031

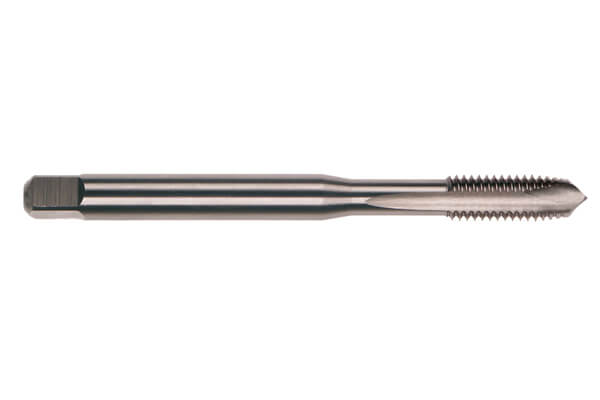

DIN 371/W/BSF Straight Flute Machine Taps
For hand or machine tapping of through or blind holes in ferrous and on-ferrous alloys.
FEATURE:
* Premium High Speed Steel;
* Spiral Points make chips to go to feeding direction, and protect threads surface;
* Suit for threading through holes in all kinds of materials;
* Round Shank With Square Driver for General Application;
* Bright Surface Finish.
SPECIFICATION:
|
Size
|
Overall Length
|
Thread Length
|
Art Number
|
|
W1/16-60
|
40
|
8
|
3031-050
|
|
W3/32-48
|
50
|
9
|
3031-051
|
|
W1/8-40
|
56
|
11
|
3031-052
|
|
W5/32-32
|
63
|
13
|
3031-053
|
|
W3/16-24
|
70
|
15
|
3031-054
|
|
W7/32-24
|
80
|
16
|
3031-055
|
|
W1/4-20
|
80
|
17
|
3031-056
|
|
W5/16-18
|
90
|
20
|
3031-057
|
|
W3/8-16
|
100
|
22
|
3031-058
|
|
BSF3/16-32
|
70
|
15
|
3031-059
|
|
BSF1/4-26
|
80
|
17
|
3031-060
|
|
BSF5/16-22
|
90
|
20
|
3031-061
|
|
BSF3/8-20
|
100
|
22
|
3031-062
|
