SKU#: 3031

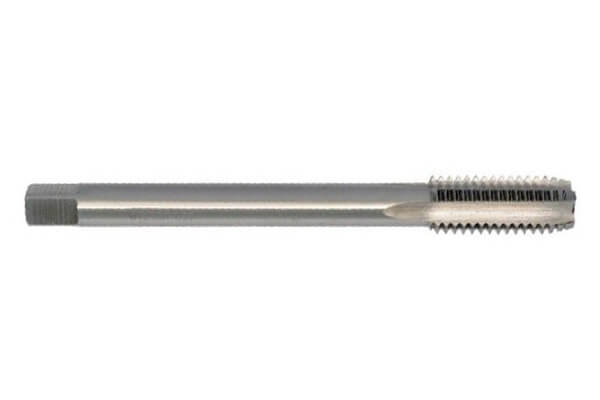

DIN 2183/BSW Machine Taps
For hand or machine tapping of through or blind holes in ferrous and on-ferrous alloys.
FEATURE:
* Premium High Speed Steel;
* Spiral Points make chips to go to feeding direction, and protect threads surface;
* Suit for threading through holes in all kinds of materials;
* Round Shank With Square Driver for General Application;
* Bright Surface Finish.
SPECIFICATION:
| Size | Overall Length | Thread Length | Model No. |
| 7/16-14BSW | 100 | 24 | 3031-180 |
| 1/2-12BSW | 110 | 29 | 3031-181 |
| 9/16-12BSW | 110 | 30 | 3031-182 |
| 5/8-11BSW | 110 | 32 | 3031-183 |
| 3/4-10BSW | 125 | 34 | 3031-184 |
| 7/8-9BSW | 140 | 34 | 3031-185 |
| 1-8BSW | 160 | 38 | 3031-186 |
| 1-1/8-7BSW | 180 | 50 | 3031-187 |
| 1-1/4-7BSW | 180 | 50 | 3031-188 |
| 1-3/8-6BSW | 200 | 56 | 3031-189 |
| 1-1/2-6BSW | 200 | 56 | 3031-190 |
