SKU#: 3032

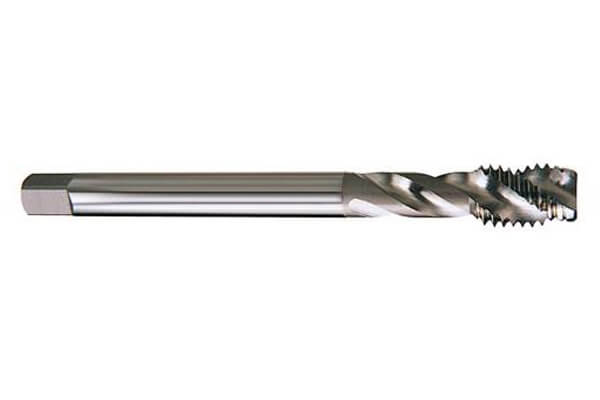

DIN 376/W/BSF Spiral Flute Taps
For hand or machine tapping of through or blind holes in ferrous and on-ferrous alloys.
FEATURE:
* Premium High Speed Steel;
* Spiral Points make chips to go to feeding direction, and protect threads surface;
* Suit for threading through holes in all kinds of materials;
* Round Shank With Square Driver for General Application;
* Bright Surface Finish.
SPECIFICATION:
|
Size
|
Overall Length
|
Thread Length
|
Art Number
|
|
W3/8-16
|
100
|
22
|
3032-050
|
|
W7/16-14
|
100
|
22
|
3032-051
|
|
W1/2-12
|
110
|
24
|
3032-052
|
|
W9/16-12
|
110
|
26
|
3032-053
|
|
W5/8-11
|
110
|
27
|
3032-054
|
|
W3/4-10
|
125
|
30
|
3032-055
|
|
W7/8-11
|
140
|
32
|
3032-056
|
|
W1î-8
|
160
|
36
|
3032-057
|
|
W1-1/8-7
|
180
|
40
|
3032-058
|
|
W1-1/4-7
|
180
|
40
|
3032-059
|
|
W1-3/8-6
|
200
|
50
|
3032-060
|
|
W1-1/2-6
|
200
|
50
|
3032-061
|
|
W1-3/4-5
|
220
|
58
|
3032-062
|
|
W2î-4-1/2
|
250
|
65
|
3032-063
|
|
BSF1/4-26
|
80
|
17
|
3032-064
|
|
BSF5/16-22
|
90
|
20
|
3032-065
|
|
BSF3/8-20
|
100
|
22
|
3032-066
|
|
BSF7/16-18
|
100
|
22
|
3032-067
|
|
BSF1/2-16
|
110
|
24
|
3032-068
|
|
BSF5/8-14
|
110
|
27
|
3032-069
|
|
BSF3/4-12
|
125
|
30
|
3032-070
|
|
BSF7/8-11
|
140
|
32
|
3032-071
|
|
BSF1"-10
|
160
|
36
|
3032-072
|
