SKU#: 3051

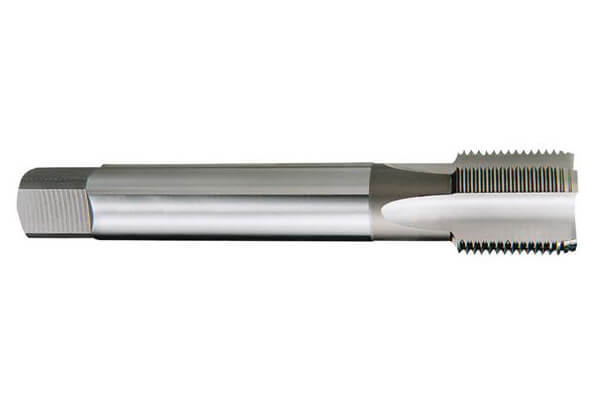

DIN 5156 Hand Taps
For hand or machine tapping of through or blind holes in ferrous and on-ferrous alloys.
FEATURE:
* Premium High Speed Steel;
* Spiral Points make chips to go to feeding direction, and protect threads surface;
* Suit for threading through holes in all kinds of materials;
* Round Shank With Square Driver for General Application;
* Bright Surface Finish.
SPECIFICATION:
| Size | Overall Length | Thread Length | Model No. |
| G1/16-28 | 90 | 22 | 3051-050 |
| G1/8-28 | 90 | 20 | 3051-051 |
| G1/4-19 | 100 | 22 | 3051-052 |
| G3/8-19 | 100 | 22 | 3051-053 |
| G1/2-14 | 125 | 25 | 3051-054 |
| G5/8-14 | 125 | 25 | 3051-055 |
| G3/4-14 | 140 | 28 | 3051-056 |
| G7/8-14 | 150 | 28 | 3051-057 |
| G1-11 | 160 | 30 | 3051-058 |
| G1-1/8-11 | 170 | 30 | 3051-059 |
| G1-1/4-11 | 170 | 30 | 3051-060 |
| G1-1/2-11 | 190 | 32 | 3051-061 |
| G1-3/4-11 | 190 | 32 | 3051-062 |
| G2-11 | 220 | 40 | 3051-063 |
