SKU#: 3091

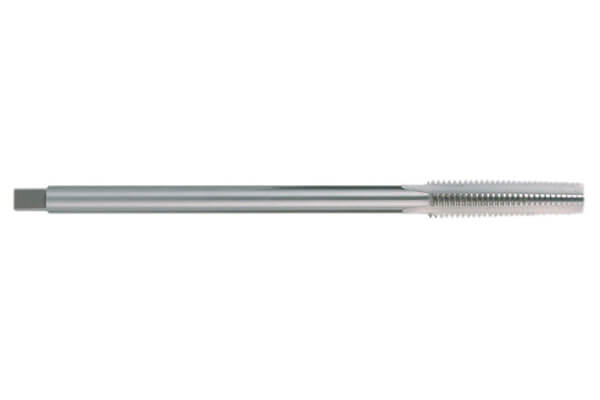

DIN 357 Metric Nut Taps
For hand or machine tapping of through or blind holes in ferrous and on-ferrous alloys.
FEATURE:
* Premium High Speed Steel;
* Spiral Points make chips to go to feeding direction, and protect threads surface;
* Suit for threading through holes in all kinds of materials;
* Round Shank With Square Driver for General Application;
* Bright Surface Finish.
SPECIFICATION:
| Size | Overall Length | Thread Length | Model No. |
| M3X0.5 | 70 | 22 | 3091-001 |
| M3.5X0.5 | 80 | 25 | 3091-002 |
| M4X0.7 | 90 | 25 | 3091-003 |
| M5X0.8 | 100 | 28 | 3091-004 |
| M6X1 | 110 | 32 | 3091-005 |
| M8X1.25 | 125 | 40 | 3091-006 |
| M10X1.5 | 140 | 45 | 3091-007 |
| M12X1.75 | 180 | 50 | 3091-008 |
| M14X2 | 200 | 56 | 3091-009 |
| M16X2 | 200 | 63 | 3091-010 |
| M18X2.5 | 220 | 63 | 3091-011 |
| M20X2.5 | 250 | 70 | 3091-012 |
| M22X2.5 | 280 | 80 | 3091-013 |
| M24X3 | 280 | 80 | 3091-014 |
| M27X3 | 315 | 90 | 3091-015 |
| M30X3.5 | 315 | 100 | 3091-016 |
| M33X3.5 | 355 | 110 | 3091-017 |
| M36X4 | 400 | 110 | 3091-018 |
| M39X4 | 400 | 125 | 3091-019 |
