SKU#: 3102

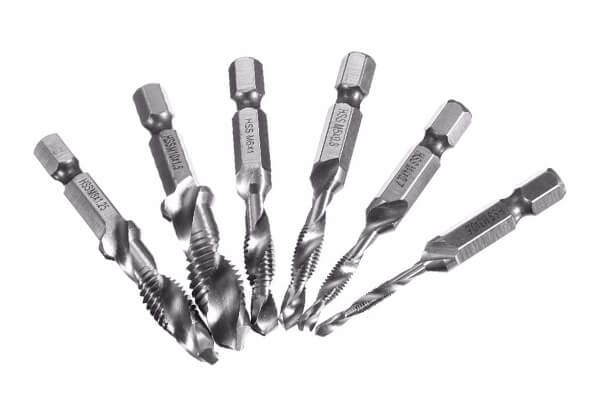

Single Pass Combination Drill & Taps
Combination drill and taps are ideally suited for non-site tapping in construction maintenance and repair, assembly, production and other environments where gold surface treatment provides maximum lubricity.
FEATURE:
* Premium High Speed Steel;
* Spiral Points make chips to go to feeding direction, and protect threads surface;
* Suit for threading through holes in all kinds of materials;
* Round Shank With Square Driver for General Application;
* Bright Surface Finish.
SPECIFICATION:
| Size | Overall Length | Thread Length | Drill Length | Drill Size | Model No. |
| M3X0.5 | 36 | 6 | 5 | 2.5 | 3102-001 |
| M4X0.7 | 39 | 8 | 6 | 3.3 | 3102-002 |
| M5X0.8 | 41 | 9 | 7 | 4.2 | 3102-003 |
| M6X1.0 | 44 | 11 | 8 | 5 | 3102-004 |
| M8X1.25 | 51 | 14 | 11 | 6.8 | 3102-005 |
| M10X1.5 | 59 | 17 | 15 | 8.5 | 3102-006 |
| No.6-32UNC | 39 | 8 | 6 | 2.84 | 3102-011 |
| No.8-32UNC | 39 | 8 | 6 | 3.51 | 3102-012 |
| No.10-24UNC | 41 | 9 | 7 | 3.94 | 3102-013 |
| No.10-32UNF | 41 | 9 | 7 | 4.17 | 3102-014 |
| No.12-24UNC | 44 | 11 | 8 | 4.57 | 3102-015 |
| 1/4-20UNC | 44 | 11 | 8 | 5.28 | 3102-016 |
| 1/4-28UNF | 44 | 11 | 8 | 5.59 | 3102-017 |
| 5/16-18UNC | 50 | 14 | 11 | 6.76 | 3102-018 |
| 5/16-24UNF | 50 | 14 | 11 | 7.04 | 3102-019 |
| 3/8-16UNC | 59 | 17 | 15 | 8.18 | 3102-020 |
| 3/8-24UNF | 59 | 17 | 15 | 8.64 | 3102-021 |
