SKU#: 40401E

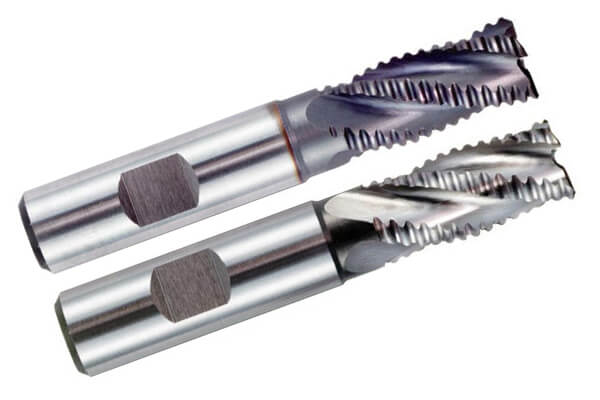

HSS Roughing End Mills
Excellent performance in high speed machining
SPECIFICATIONS:
HSS Roughing End Mills
Manufacturing Process: Fully Ground
Spiral Angle: Helix 30
Flutes: 4 or 6 or 8
Type: Ball Nose
Material: HSS 4341, 9341, M2, M35, M42
Finishing: Bright, TiN, TiNAL
| Art No. | Diameter | Shank Size | Flute Length | Allover Length | No.s of Flutes |
| 40401E060 | 6 | 6 | 13 | 57 | 4 |
| 40401E080 | 8 | 10 | 19 | 69 | 4 |
| 40401E100 | 10 | 10 | 22 | 72 | 4 |
| 40401E110 | 11 | 12 | 22 | 79 | 4 |
| 40401E120 | 12 | 12 | 26 | 83 | 4 |
| 40401E140 | 14 | 12 | 26 | 83 | 4 |
| 40401E160 | 16 | 16 | 32 | 92 | 4 |
| 40401E180 | 18 | 16 | 32 | 92 | 4 |
| 40401E200 | 20 | 20 | 38 | 104 | 4 |
| 40401E220 | 22 | 20 | 38 | 104 | 4 |
| 40401E220 | 22 | 20 | 38 | 104 | 5 |
| 40401E250 | 25 | 25 | 45 | 121 | 4 |
| 40401E250 | 25 | 25 | 45 | 121 | 5 |
| 40401E280 | 28 | 25 | 45 | 121 | 5 |
| 40401E300 | 30 | 25 | 45 | 121 | 5 |
| 40401E300 | 30 | 25 | 45 | 121 | 6 |
| 40401E320 | 32 | 32 | 53 | 133 | 5 |
| 40401E320 | 32 | 32 | 53 | 133 | 6 |
| 40401E350 | 35 | 32 | 53 | 133 | 5 |
| 40401E400 | 40 | 40 | 63 | 155 | 6 |
| 40401E400 | 40 | 40 | 63 | 155 | 8 |
| 40401E450 | 45 | 40 | 63 | 155 | 6 |
| 40401E450 | 45 | 40 | 63 | 155 | 8 |
| 40401E500 | 50 | 50 | 75 | 177 | 6 |
| 40401E500 | 50 | 50 | 75 | 177 | 8 |
| 40401E550 | 55 | 50 | 75 | 177 | 6 |
| 40401E550 | 55 | 50 | 75 | 177 | 8 |
| 40401E630 | 63 | 63 | 90 | 202 | 6 |
| 40401E630 | 63 | 63 | 90 | 202 | 8 |
| 40401E710 | 71 | 63 | 90 | 202 | 6 |
| 40401E710 | 71 | 63 | 90 | 202 | 8 |
HSS Roughing End Mills ---- Long Series
Manufacturing Process: Fully Ground
Spiral Angle: Helix 30
Flutes: 4 or 6 or 8
Type: Ball Nose
Material: HSS 4341, 9341, M2, M35, M42
Finishing: Bright, TiN, TiNAL
| Art No. | Diameter | Shank Size | Flute Length | Allover Length | No.s of Flutes |
| 40401E060L | 6 | 6 | 24 | 68 | 4 |
| 40401E080L | 8 | 10 | 38 | 88 | 4 |
| 40401E100L | 10 | 10 | 45 | 95 | 4 |
| 40401E110L | 11 | 12 | 45 | 102 | 4 |
| 40401E120L | 12 | 12 | 53 | 110 | 4 |
| 40401E140L | 14 | 12 | 53 | 110 | 4 |
| 40401E160L | 16 | 16 | 63 | 123 | 4 |
| 40401E180L | 18 | 16 | 63 | 123 | 4 |
| 40401E200L | 20 | 20 | 75 | 141 | 4 |
| 40401E220L | 22 | 20 | 75 | 141 | 4 |
| 40401E220L | 22 | 20 | 75 | 141 | 5 |
| 40401E250L | 25 | 25 | 90 | 166 | 4 |
| 40401E250L | 25 | 25 | 90 | 166 | 5 |
| 40401E280L | 28 | 25 | 90 | 166 | 5 |
| 40401E300L | 30 | 25 | 90 | 166 | 5 |
| 40401E300L | 30 | 25 | 90 | 166 | 6 |
| 40401E320L | 32 | 32 | 106 | 186 | 5 |
| 40401E320L | 32 | 32 | 106 | 186 | 6 |
| 40401E350L | 35 | 32 | 106 | 186 | 5 |
| 40401E400L | 40 | 40 | 125 | 217 | 6 |
| 40401E400L | 40 | 40 | 125 | 217 | 8 |
| 40401E450L | 45 | 40 | 125 | 217 | 6 |
| 40401E450L | 45 | 40 | 125 | 217 | 8 |
| 40401E500L | 50 | 50 | 150 | 252 | 6 |
| 40401E500L | 50 | 50 | 150 | 252 | 8 |
| 40401E550L | 55 | 50 | 150 | 252 | 6 |
| 40401E550L | 55 | 50 | 150 | 252 | 8 |
| 40401E630L | 63 | 63 | 180 | 292 | 6 |
| 40401E630L | 63 | 63 | 180 | 292 | 8 |
| 40401E710L | 71 | 63 | 180 | 292 | 6 |
| 40401E710L | 71 | 63 | 180 | 292 | 8 |
