SKU#: 40401F

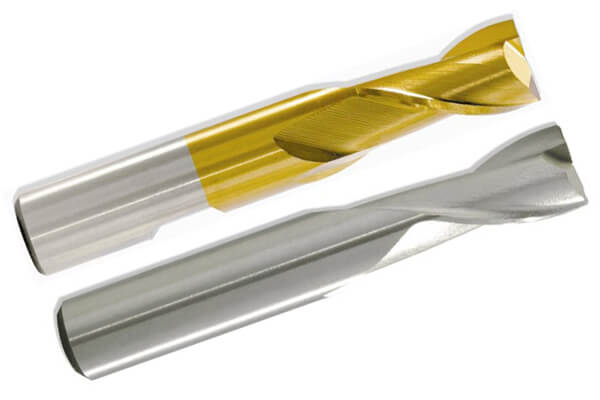

HSS End Mills with ANSI Standard
Excellent performance in high speed machining
SPECIFICATIONS:
HSS End Mills with ANSI Standard
Manufacturing Process: Fully Ground
Spiral Angle: Helix 30
Flutes: 4 or 6 or 8
Type: Square
Material: HSS 4341, 9341, M2, M35, M42
Finishing: Bright, TiN, TiNAL
| Alt No. | Diameter | Shank Zize | Flute Length | Allover Length |
| 40401F0108 | 1/8" | 3/8" | 3/8" | 2-5/16" |
| 40401F0532 | 5/32" | 3/8" | 7/16" | 2-5/16" |
| 40401F0316 | 3/16" | 3/8" | 7/16" | 2-5/16" |
| 40401F0732 | 7/32" | 3/8" | 1/2" | 2-5/16" |
| 40401F0104 | 1/4" | 3/8" | 1/2" | 2-5/16" |
| 40401F0932 | 9/32" | 3/8" | 9/16" | 2-5/16" |
| 40401F0516 | 5/16" | 3/8" | 9/16" | 2-5/16" |
| 40401F1132 | 11/32" | 3/8" | 9/16" | 2-5/16" |
| 40401F0308 | 3/8" | 3/8" | 9/16" | 2-5/16" |
| 40401F1332 | 13/32" | 3/8" | 13/16" | 2-1/2" |
| 40401F0716 | 7/16" | 3/8" | 13/16" | 2-1/2" |
| 40401F1532 | 15/32" | 3/8" | 13/16" | 2-1/2" |
| 40401F0102 | 1/2" | 1/2" | 1" | 3" |
| 40401F0916 | 9/16" | 1/2" | 1-1/8" | 3-1/8" |
| 40401F0508 | 5/8" | 5/8" | 1-5/16" | 3-7/16" |
| 40401F1116 | 11/16" | 5/8" | 1-5/16" | 3-7/16" |
| 40401F0304 | 3/4" | 3/4" | 1-5/16" | 3-7/16" |
| 40401F1316 | 13/16" | 5/8" | 1-1/2" | 3-5/8" |
| 40401F0708 | 7/8" | 3/4" | 1-1/2" | 3-3/4" |
| 40401F0100 | 1" | 1" | 1-5/8" | 4-1/8" |
| 40401F1108 | 1-1/8" | 1" | 1-5/8" | 4-1/8" |
| 40401F1104 | 1-1/4" | 1-1/4" | 1-5/8" | 4-1/8" |
| 40401F1102 | 1-1/2" | 1-1/4" | 1-5/8" | 4-1/8" |

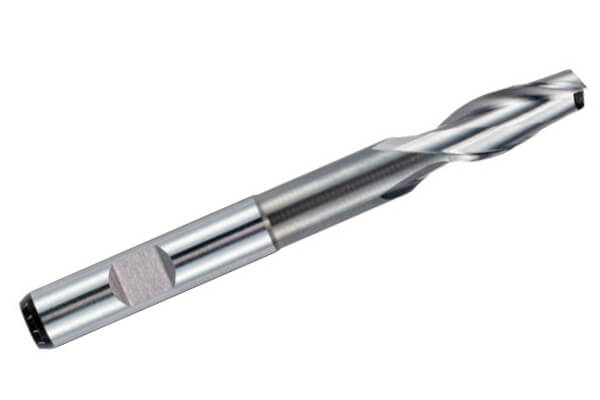

2 Flutes HSS End Mills with Square End --- Long Series
| Alt No. | Diameter | Shank Size | Flute Length | Allover Length |
| 40401F0108L | 1/8" | 3/8" | 3/8" | 2-3/8" |
| 40401F0316L | 3/16" | 3/8" | 1/2" | 2-11/16" |
| 40401F0104L | 1/4" | 3/8" | 5/8" | 3-1/16" |
| 40401F0516L | 15/16" | 3/8" | 3/4" | 3-5/16" |
| 40401F0308L | 3/8" | 3/8" | 3/4" | 3-5/16" |
| 40401F0102L | 1/2" | 1/2' | 1" | 4" |
| 40401F0508L | 5/8" | 5/8" | 1-3/8" | 4-5/8" |
| 40401F0304L | 3/4" | 3/4" | 1-5/8" | 4-5/8" |
| 40401F0708L | 7/8" | 7/8" | 2" | 6" |
| 40401F0100 | 1" | 1' | 2-1/2" | 7-1/4" |
| 40401F1104 | 1-1/4" | 1-1/4" | 3" | 7-1/4" |

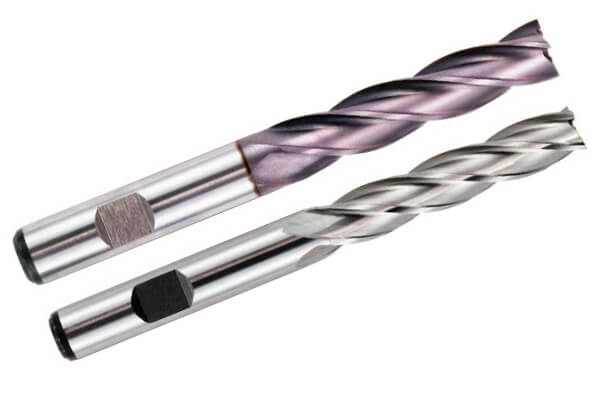

4 (6) Flutes HSS End Mills with Square End
| Art No. | Diameter | Shank Size | Flute Length | Allover Length |
| 40401G0316 | 3/16" | 3/8" | 1/2" | 2-3/8" |
| 40401G0104 | 1/4" | 3/8" | 5/8" | 2-7/16" |
| 40401G0516 | 5/16" | 3/8" | 3/4" | 2-1/2" |
| 40401G0308 | 3/8" | 3/8" | 3/4" | 2-1/2" |
| 40401G0102 | 1/2" | 1/2" | 1-1/4" | 3-1/4" |
| 40401G0508 | 5/8" | 5/8" | 1-5/8" | 3-3/4" |
| 40401G0304 | 3/4" | 5/8" | 1-5/8" | 3-3/4" |
| 40401G0304A | 3/4" | 3/4" | 1-5/8" | 3-7/8" |
| 40401H1316 | 13/16" | 5/8" | 1-5/8" | 3-3/4" |
| 40401G0708 | 7/8" | 3/4" | 1-7/8" | 4-1/8" |
| 40401G0708A | 7/8" | 7/8" | 1-7/8" | 4-1/8" |
| 40401G0100 | 1" | 3/4" | 1-7/8" | 4-1/8" |
| 40401G0100A | 1" | 1" | 2" | 4-1/2" |
| 40401G1108 | 1-1/8" | 1" | 2" | 4-1/2" |
| 40401G1108 | 1-1/4" | 1" | 2" | 4-1/2" |
| 40401G1104A | 1-1/4" | 1-1/4" | 2" | 4-1/2" |
| 40401G1102 | 1-1/2" | 1" | 2" | 4-1/2" |
| 40401G1102A | 1-1/2" | 1-1/4" | 2" | 4-1/2" |
| 40401G1304 | 1-3/4" | 1-1/4" | 2" | 4-1/2" |
| 40401G0200 | 2" | 1-1/4" | 2" | 4-1/2" |
4 (6) Flutes HSS End Mills with Square End --- Long Series
| Art No. | Diameter | Shank Size | Flute Lenght | Allover Length |
| 40401G0104L | 1/4" | 1/4" | 1/4" | 1/4" |
| 40401G0516L | 5/16" | 5/16" | 5/16" | 5/16" |
| 40401G0308L | 3/8" | 3/8" | 3/8" | 3/8" |
| 40401G0102L | 1/2" | 1/2" | 1/2" | 1/2" |
| 40401G0508L | 5/8" | 5/8" | 5/8" | 5/8" |
| 40401G0304L | 3/4" | 3/4" | 3/4" | 3/4" |
| 40401G0708L | 7/8" | 7/8" | 7/8" | 7/8" |
| 40401G0100L | 1" | 1" | 1" | 1" |
| 40401G01108L | 1-1/8" | 1-1/8" | 1-1/8" | 1-1/8" |
| 40401G1104L | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" |
| 40401G1104AL | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" |
| 40401G1102L | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" |
| 40401G1102AL | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" |
| 40401G1304L | 1-3/4" | 1-3/4" | 1-3/4" | 1-3/4" |
| 40401G0200L | 2" | 2" | 2" | 2" |
Related Product
SKU#: 40401C
DIN844 HSS End Mills
SKU#: 40401D

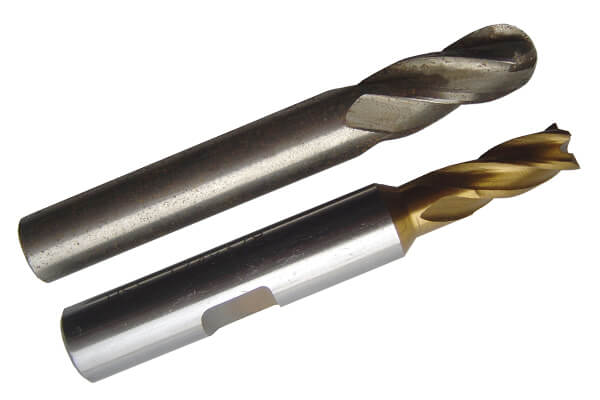

DIN844 HSS Ball Nose End Mills
