Size: #1-#5 (Heavy Duty)
Packing: Plastic Box

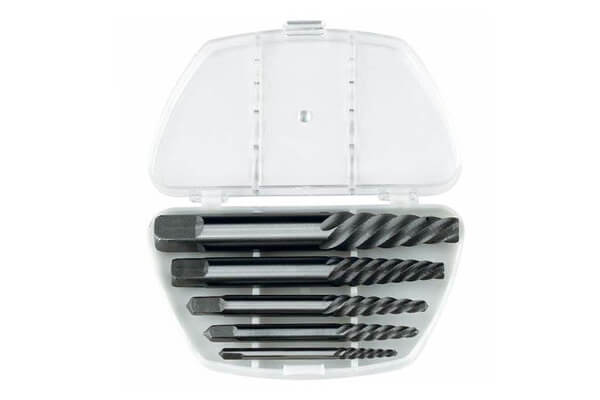

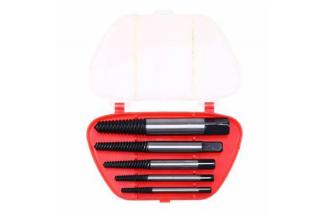

High carbon steel spiral flute screw extractors are heat-treated and tempered for long life. The tool surface is treated to resist rust, and the tapered left-hand spiral flutes grip screws firmly. Intended to remove screws manually with T-handle tap wrench or equivalent. Its spiral flutes are designed to embed themselves deeper into the metal as you turn the tool, so as the fastener resistance increases, the extractor's grip increases. Required drill size is permanently laser-marked on the shank of each extractor for easy reference.
It is designed to remove stubborn, rusted, stripped, screws or bolts, even factory installed carriage type bolts with no slots to remove from. Spiral screw extractor set broken damaged screw remover collecter puller Screw take out repair tool.
|
Art No.
|
Screw Extractor # | For Removing Screws Diameter | Drill Size to Use |
|---|---|---|---|
|
50701001
|
1
|
3/32" to 5/32"
|
1/16" to 5/64"
|
|
50701002
|
2
|
5/32" to 7/32"
|
3/32" to 7/64"
|
|
50701003
|
3
|
7/32" to 9/32"
|
9/64" to 5/32"
|
|
50701004
|
4
|
9/32" to 3/8"
|
7/32" to 1/4"
|
|
50701005
|
5
|
3/8" to 5/8", 1/8" & 1/4" pipe
|
17/64" to 19/64"
|
|
50701006
|
6
|
5/8" to 7/8", 3/8" pipe
|
25/64" to 27/64"
|
|
50701007
|
7
|
7/8" to 1-3/8", 3/4" pipe
|
33/64" to 35/64"
|
|
50701008
|
8
|
1-1/8" to 1-3/8", 3/4" pipe
|
25/32" to 27/32"
|
|
50701009
|
9
|
1-3/8" and up, 1" pipe
|
1-1/16" to 1-1/8"
|
