SKU#: 733S

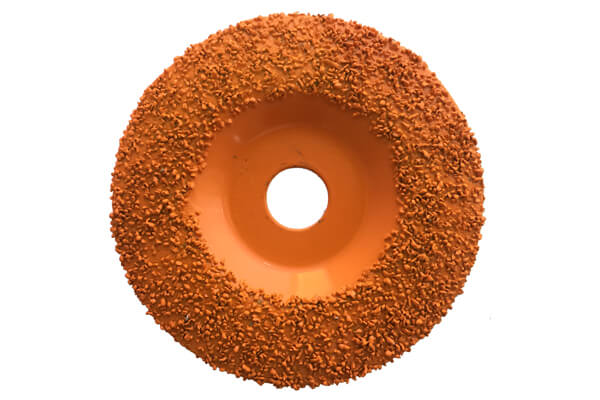

Vacuum Brazed Diamond Cup Wheel
· High safety
· High strength
· High efficiency
· Friendly environment
· Simple storage
· High strength
· High efficiency
· Friendly environment
· Simple storage
SPECIFICATIONS:
| Diameter | Thickness | Bore | Thread | Range of Grit |
| 80mm | 2 | 16/20/22.3 | M14 or 5/8''-11 |
30/40
35/45
50/60
80/100
100/120
|
| 100mm | 3 | 16/20/22.3 | M14 or 5/8''-11 | |
| 110mm | 3 | 20/22.3 | M14 or 5/8''-11 | |
| 125mm | 3 | 20/22.3 | M14 or 5/8''-11 | |
| 150mm | 3 | 20/22.3 | M14 or 5/8''-11 | |
| 180mm | 3 | 20/22.3 | M14 or 5/8''-11 | |
| 230mm | 3 | 20/22.3 | M14 or 5/8''-11 |
Other types can be processed according to drawings and samples provided by customers.
FEATURES:
* The latest technology in diamond vacuum brazing;
* Very aggressive, light weight, run extremely smooth, virtually chip free and never need dressing;
* Very thin metal cup wheels for stock removal and shaping on practically any surface, especially granite, marble, travertine, limestone, engineered stone;
* Dry or Wet working, Multi-purpose for Iron steel granite marble natural stone ceramic and even steel grinding.
APPLICATION:
This cup wheel is used for grinding and polishing the surface of granite, marble, concrete.
