SKU#: B311

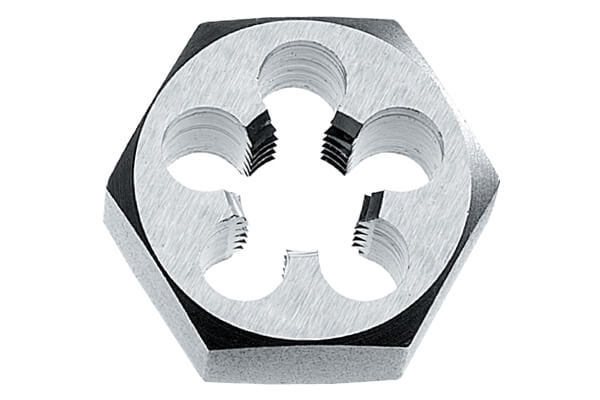

DIN 382 Hexagon Die
* Hexagon Die Nuts;
* High Speed Steel;
* For reclamation of screw threads.
FEATURE:
* Premium High Speed Steel and Alloy Tool Steel;
* Ideal for rethreading fasteners and fastener holes for auto and machinery repair, it will play an important role in your work;
* Ideal for thread cutting conventional materials;
* Bright Surface Finish.
SPECIFICATION:
| Size | Outside | Model No. HSS |
| M3x0.5 | 19x5mm | B311-300 |
| M3.5x0.6 | 19x5mm | B311-301 |
| M4x0.7 | 19x5mm | B311-302 |
| M4.5x0.75 | 19x7mm | B311-303 |
| M5x0.8 | 19x7mm | B311-304 |
| M6x1 | 19x7mm | B311-305 |
| M7x1 | 22x9mm | B311-306 |
| M8x1.25 | 22x9mm | B311-307 |
| M9x1.25 | 22x9mm | B311-308 |
| M10x1.5 | 27x11mm | B311-309 |
| M11x1.5 | 27x11mm | B311-310 |
| M12x1.75 | 36x14mm | B311-311 |
| M14x2 | 36x14mm | B311-312 |
| M16x2 | 41x18mm | B311-313 |
| M18x2.5 | 41x18mm | B311-314 |
| M20x2.5 | 41x18mm | B311-315 |
| M22x2.5 | 50x22mm | B311-316 |
| M24x3 | 50x22mm | B311-317 |
| M27x3 | 60x25mm | B311-318 |
| M30x3.5 | 60x25mm | B311-319 |
| M33x3.5 | 60x25mm | B311-320 |
| M36x4 | 60x25mm | B311-321 |
| M39x4 | 70x30mm | B311-322 |
| M42x4.5 | 70x30mm | B311-323 |
| M45x4.5 | 85x36mm | B311-324 |
| M48x5 | 85x36mm | B311-325 |
| M52x5 | 85x36mm | B311-326 |
| M3x0.35 | 19x5mm | B311-327 |
| M4x0.5 | 19x5mm | B311-328 |
| M5x0.5 | 19x5mm | B311-329 |
| M6x0.75 | 19x5mm | B311-330 |
| M7x0.75 | 22x9mm | B311-331 |
| M8x0.75 | 22x9mm | B311-332 |
| M8x1 | 22x9mm | B311-333 |
| M9x1 | 22x9mm | B311-334 |
| M10x1 | 27x11mm | B311-335 |
| M11x1 | 27x11mm | B311-336 |
| M12x1 | 36x10mm | B311-337 |
| M12x1.25 | 36x10mm | B311-338 |
| M12x1.5 | 36x10mm | B311-339 |
| M14x1 | 36x10mm | B311-340 |
| M14x1.25 | 36x10mm | B311-341 |
| M14x1.5 | 36x10mm | B311-342 |
| M16x1.5 | 41x14mm | B311-343 |
| M18x1.5 | 41x14mm | B311-344 |
| M18x2.5 | 41x14mm | B311-345 |
| M20x1.5 | 41x14mm | B311-346 |
| M20x2 | 41x14mm | B311-347 |
| M22x1.5 | 50x16mm | B311-348 |
| M22x2 | 50x16mm | B311-349 |
| M24x1.5 | 50x16mm | B311-350 |
| M24x2 | 50x16mm | B311-351 |
| M26x1.5 | 60x18mm | B311-352 |
| M27x1.5 | 60x18mm | B311-353 |
| M27x2 | 60x18mm | B311-354 |
| M28x1.5 | 60x18mm | B311-355 |
| M30x1.5 | 60x18mm | B311-356 |
| M30x2 | 60x18mm | B311-357 |
| M32x1.5 | 60x18mm | B311-358 |
| M33x1.5 | 60x18mm | B311-359 |
| M33x2 | 60x18mm | B311-360 |
| M35x1.5 | 60x18mm | B311-361 |
| M36x1.5 | 60x18mm | B311-362 |
| M36x2 | 60x18mm | B311-363 |
| M36x3 | 60x25mm | B311-364 |
| M38x1.5 | 70x20mm | B311-365 |
| M39x1.5 | 70x20mm | B311-366 |
| M39x2 | 70x20mm | B311-367 |
| M39x3 | 70x30mm | B311-368 |
| M40x1.5 | 70x20mm | B311-369 |
| M40x2 | 70x20mm | B311-370 |
| M42x1.5 | 70x20mm | B311-371 |
| M42x2 | 70x20mm | B311-372 |
| M42x3 | 70x30mm | B311-373 |
| M45x1.5 | 85x22mm | B311-374 |
| M45x2 | 85x22mm | B311-375 |
| M45x3 | 85x36mm | B311-376 |
| M48x1.5 | 85x22mm | B311-377 |
| M48x2 | 85x22mm | B311-378 |
| M48x3 | 85x36mm | B311-379 |
| M50x1.5 | 85x22mm | B311-380 |
| M52x1.5 | 85x22mm | B311-381 |
| M52x2 | 85x22mm | B311-382 |
| M53x3 | 85x36mm | B311-383 |
