SKU#: 50901-182-HX1525

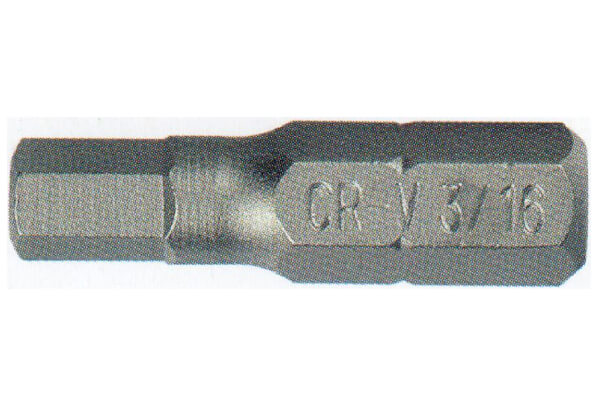

Hex Bits with Hole
Universal Use
Widely used in electronics, furniture, automobile, vessel, aviation and so on.
FEATURE:
* S2 Modified Steel and an optimised heat treatment process results in extra-hard quality for adequate performance;
* Professional heat treatment and processing, HRC 58-60;
* Surface finish: sand blasting, blackening, nickel plating;
* Precision design reduces stripping.
SPECIFICATION:
| Mode No. | D (#) | B (mm) | L (mm) | PC/CTN | NW/GW (kg) |
| HX1525 | 1.5 | 6.35 | 25 | 2000 | 12/13 |
| HX2025 | 2 | 6.35 | 25 | 2000 | 12/13 |
| HX2525 | 2.5 | 6.35 | 25 | 2000 | 12/13 |
| HX3025 | 3 | 6.35 | 25 | 2000 | 12/13 |
| HX4025 | 4 | 6.35 | 25 | 2000 | 12/13 |
| HX5025 | 5 | 6.35 | 25 | 2000 | 12/13 |
| HX5525 | 5.5 | 6.35 | 25 | 2000 | 12/13 |
| HX6025 | 6 | 6.35 | 25 | 2000 | 12/13 |
| HX6325 | 6.35 | 6.35 | 25 | 2000 | 12/13 |
| HX7025 | 7 | 6.35 | 25 | 2000 | 12/13 |
| HX8025 | 8 | 6.35 | 25 | 2000 | 12/13 |
| HX11625 | 1/16 | 6.35 | 25 | 2000 | 12/13 |
| HX56425 | 5/64 | 6.35 | 25 | 2000 | 12/13 |
| HX33225 | 3/32 | 6.35 | 25 | 2000 | 12/13 |
| HX76425 | 7/64 | 6.35 | 25 | 2000 | 12/13 |
| HX1825 | 1/8 | 6.35 | 25 | 2000 | 12/13 |
| HX96425 | 9/64 | 6.35 | 25 | 2000 | 12/13 |
| HX53225 | 5/32 | 6.35 | 25 | 2000 | 12/13 |
| HX31625 | 3/16 | 6.35 | 25 | 2000 | 12/13 |
| HX73225 | 7/32 | 6.35 | 25 | 2000 | 12/13 |
| HX1425 | 1/4 | 6.35 | 25 | 2000 | 12/13 |
