SKU#: 50901-177-PH022850
Phillips Power Bits
Universal Use
Widely used in electronics, furniture, automobile, vessel, aviation and so on.
FEATURE:
* S2 Modified Steel and an optimised heat treatment process results in extra-hard quality for adequate performance;
* Professional heat treatment and processing, HRC 58-60;
* Surface finish: sand blasting, blackening, nickel plating;
* Precision design reduces stripping.
SPECIFICATION:

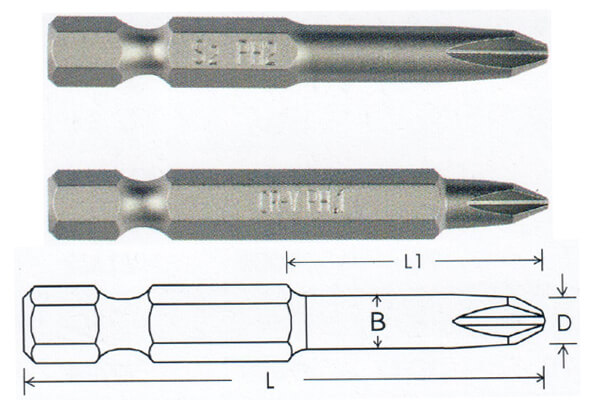

| Mode No. | D (#) | B (mm) | L (mm) | PC/CTN | NW/GW (kg) |
| PH022850 | 0# | 2 | 28 | 50 | 12/13 |
| PH032850 | 0# | 3 | 28 | 50 | 12/13 |
| PH142850 | 1# | 4 | 28 | 50 | 12/13 |
| PH242850 | 2# | 4.5 | 28 | 50 | 12/13 |
| PH26050 | 2# | 6 | / | 50 | 12/13 |
| PH262850 | 2# | 6 | 28 | 50 | 12/13 |
| PH36050 | 3# | 6 | / | 50 | 12/13 |
| PH145075 | 1# | 4.5 | 50 | 75 | 18/19 |
| PH255075 | 2# | 5 | 50 | 75 | 18/19 |
| PH26075 | 2# | 6 | / | 75 | 18/19 |
| PH365075 | 3# | 6 | 50 | 75 | 18/19 |
| PH36075 | 3# | 6 | / | 75 | 18/19 |
| PH1470100 | 1# | 4.5 | 70 | 100 | 24/25 |
| PH2470100 | 2# | 4.5 | 70 | 100 | 24/25 |
| PH260100 | 2# | 6 | / | 100 | 24/25 |
| PH2490125 | 2# | 4.5 | 90 | 125 | 21/22 |
| PH260125 | 2# | 6 | / | 125 | 21/22 |
| PH24100150 | 2# | 4.5 | 100 | 150 | 17/18 |
| PH260150 | 2# | 6 | / | 150 | 17/18 |
| PH25150200 | 2# | 6 | 150 | 200 | 27/28 |
| PH260200 | 2# | 6 | / | 200 | 27/28 |
