SKU#: 40402AL

2(4) Flute Solid Carbide End Mills Extended type

Excellent performance in high speed machining

Share This Product:

Description

SPECIFICATIONS:

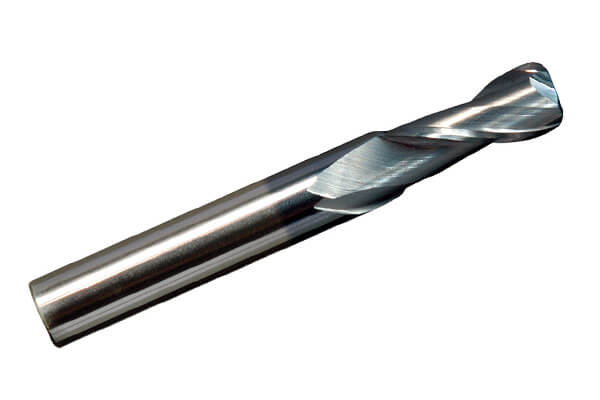

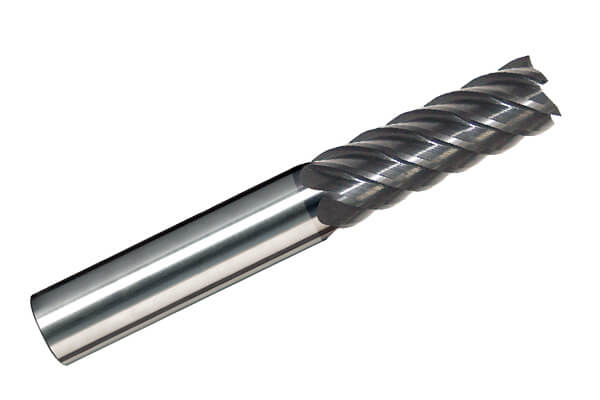

2(4) Flute Solid Carbide End Mills Extended type

1. Cobalt: 10% ---> Carbide ( Particle 0.6um )
Cobalt: 12% ---> Carbide ( Particle 0.4-0.6um );
2. With TiALN Coating or Non-Coating;
3. Excellent performance in high speed machining;
4. Helix: 30°, Shank: h6 ;
5. Cutting Object: HRC<45 (10% Cobalt);
HRC53-58 (12% Cobalt);

Extended type

2 Flutes	4 Flutes	Diameter (D)	Shank (d)	Flute length (l)	Allover length(L)
40402A2010L	40402A4010L	1	3	5	60
40402A2015L	40402A4015L	1.5	3	7.5	60
40402A2020L	40402A4020L	2	3	10	60
40402A2025L	40402A4025L	2.5	3	12.5	60
40402A2030L	40402A4030L	3	3	15	60
40402A2040L	40402A4040L	4	4	20	80
40402A2050L	40402A4050L	5	5	25	80
40402A2060L	40402A4060L	6	6	25	80
40402A2080L	40402A4080L	8	8	35	90
40402A2100L	40402A4100L	10	10	45	100
40402A2120L	40402A4120L	12	12	50	100
40402A2160L	40402A4160L	16	16	65	150

DIN Standard

2 Flutes	4 Flutes	Diameter (D)	Shank (d)	Flute length (l)	Allover length(L)
40403A2020	40403A4020	2	3	8	38
40403A2030	40403A4030	3	3	12	38
40403A2040	40403A4040	4	4	12	45
40403A2050	40403A4050	5	5	15	50
40403A2060	40403A4060	6	6	16	57
40403A2080	40403A4080	8	8	22	63
40403A2100	40403A4100	10	10	25	72
40403A2120	40403A4120	12	12	28	83
40403A2140	40403A4140	14	14	30	83
40403A2160	40403A4160	16	16	35	92
40403A2180	40403A4180	18	18	36	92
40403A2200	40403A4200	20	20	41	104
40403A2250	40403A4250	25	25	45	121

ANSI Standard

2 Flutes	4 Flutes	Diameter (D)	Shank (d)	Flute length (l)	Allover length(L)
40404A2--1/32	40404A4--1/32	1/32	43473	3/32	36893
40404A2--1/16	40404A4--1/16	43481	43473	43469	36893
40404A2--3/32	40404A4--3/32	3/32	43473	43532	36893
40404A2--1/8	40404A4--1/8	43473	43473	43467	36893
40404A2--3/16	40404A4--3/16	43540	43540	43593	2
40404A2--1/4	40404A4--1/4	43469	43469	43528	37258
40404A2--3/8	40404A4--3/8	43532	43532	1	37258
40404A2--1/2	40404A4--1/2	43467	43467	1	3
40404A2---5/8	40404A4---5/8	43593	43593	36893	37623
40404A2--3/4	40404A4--3/4	43528	43528	36893	4
40404A2--1	40404A4--1	1	1	36893	4
