SKU#: 40402BL

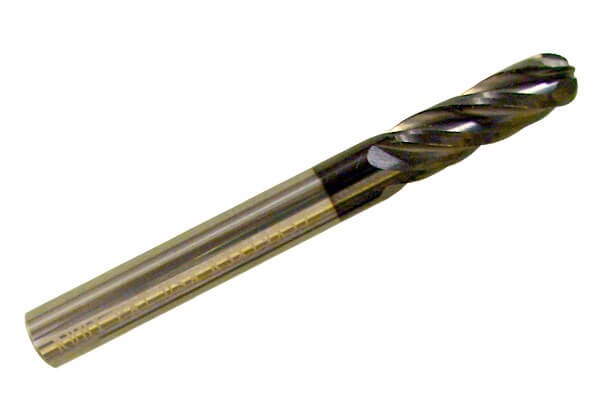

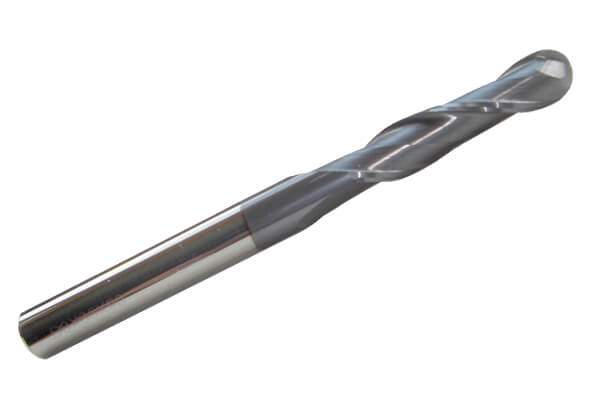

2(4) Flute Solid Carbide Ball Nose End Mills Extended type
Excellent performance in high speed machining
SPECIFICATIONS:
2(4) Flute Solid Carbide Ball Nose End Mills Extended type
1. Cobalt: 10% ---> Carbide ( Particle 0.6um )
Cobalt: 12% ---> Carbide ( Particle 0.4-0.6um );
2. With TiALN Coating or Non-Coating;
3. Excellent performance in high speed machining;
4. Helix: 30°, Shank: h6 ;
5. Cutting Object: HRC<45 (10% Cobalt);
HRC53-58 (12% Cobalt);
Extended type
| 2 Flutes | 4 Flutes | Diameter (D) | Shank (d) | Flute length (l) | Available length(l1) |
| 40402B2010L | 40402B4010L | 1 | 3 | 2 | 6 |
| 40402B2015L | 40402B4015L | 1.5 | 3 | 2.5 | 8 |
| 40402B2020L | 40402B4020L | 2 | 3 | 3 | 8 |
| 40402B2025L | 40402B4025L | 2.5 | 3 | 3.5 | 12 |
| 40402B2030L | 40402B4030L | 3 | 3 | 4 | 22 |
| 40402B2040L | 40402B4040L | 4 | 4 | 5 | 30 |
| 40402B2050L | 40402B4050L | 5 | 5 | 6 | 35 |
| 40402B2060L | 40402B4060L | 6 | 6 | 8 | 35 |
| 40402B2080L | 40402B4080L | 8 | 8 | 12 | 45 |
| 40402B2100L | 40402B4100L | 10 | 10 | 15 | 50 |
| 40402B2120L | 40402B4120L | 12 | 12 | 15 | 50 |
| 40402B2160L | 40402B4160L | 16 | 16 | 20 | 70 |
| 40402B2200L | 40402B4200L | 20 | 20 | 25 | 70 |
DIN Standard
| 2 Flutes | 4 Flutes | Diameter (D) | Shank (d) | Flute length (l) | Allover length(L) |
| 40403B2020 | 40403B4020 | 2 | 3 | 8 | 38 |
| 40403B2030 | 40403B4030 | 3 | 3 | 12 | 38 |
| 40403B2040 | 40403B4040 | 4 | 4 | 12 | 54 |
| 40403B2050 | 40403B4050 | 5 | 5 | 15 | 54 |
| 40403B2060 | 40403B4060 | 6 | 6 | 16 | 54 |
| 40403B2080 | 40403B4080 | 8 | 8 | 22 | 58 |
| 40403B2100 | 40403B4100 | 10 | 10 | 25 | 66 |
| 40403B2120 | 40403B4120 | 12 | 12 | 28 | 73 |
| 40403B2140 | 40403B4140 | 14 | 14 | 30 | 75 |
| 40403B2160 | 40403B4160 | 16 | 16 | 35 | 82 |
| 40403B2200 | 40403B4200 | 20 | 20 | 41 | 92 |
ANSI Standard
| 2 Flutes | 4 Flutes | Diameter (D) | Shank (d) | Flute length (l) | Allover length(L) |
| 40404B2--1/32 | 40404B4--1/32 | 1/32 | 1/8 | 3/32 | 1-1/2 |
| 40404B2--1/16 | 40404B4--1/16 | 1/16 | 1/8 | 1/4 | 1-1/2 |
| 40404B2--3/32 | 40404B4--3/32 | 3/32 | 1/8 | 3/8 | 1-1/2 |
| 40404B2--1/8 | 40404B4--1/8 | 1/8 | 1/8 | 1/2 | 1-1/2 |
| 40404B2--3/16 | 40404B4--3/16 | 3/16 | 3/16 | 5/8 | 2 |
| 40404B2--1/4 | 40404B4--1/4 | 1/4 | 1/4 | 3/4 | 2-1/2 |
| 40404B2--3/8 | 40404B4--3/8 | 3/8 | 3/8 | 1 | 2-1/2 |
| 40404B2--1/2 | 40404B4--1/2 | 1/2 | 1/2 | 1 | 3 |
| 40404B2---5/8 | 40404B4---5/8 | 5/8 | 5/8 | 1-1/2 | 3-1/2 |
| 40404B2--3/4 | 40404B4--3/4 | 3/4 | 3/4 | 1-1/2 | 4 |
| 40404B2--1 | 40404B4--1 | 1 | 1 | 1-1/2 | 4 |
