SKU#: 40402B

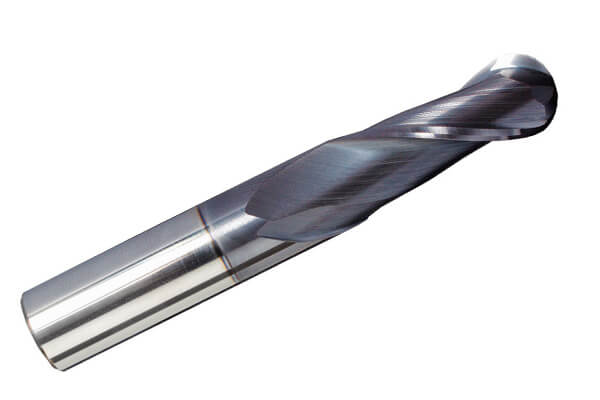

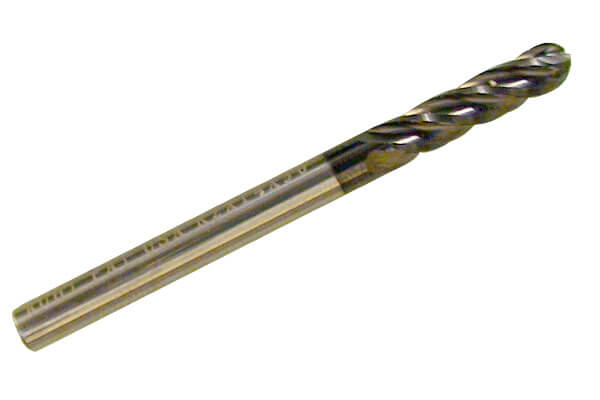

2(4) Flute Solid Carbide Ball Nose End Mills
Excellent performance in high speed machining
SPECIFICATIONS:
2(4) Flute Solid Carbide Ball Nose End Mills
1. Cobalt: 10% ---> Carbide ( Particle 0.6um )
Cobalt: 12% ---> Carbide ( Particle 0.4-0.6um );
2. With TiALN Coating or Non-Coating;
3. Excellent performance in high speed machining;
4. Helix: 30°, Shank: h6 ;
5. Cutting Object: HRC<45 (10% Cobalt);
HRC53-58 (12% Cobalt);
Standard type
| 2 Flutes | 4 Flutes | Diameter (D) | Shank (d) | Flute length (l) | Allover length(L) |
| 40402B2010 | 40402B4010 | 1 | 3 | 2 | 38 |
| 40402B2015 | 40402B4015 | 1.5 | 3 | 3 | 38 |
| 40402B2020 | 40402B4020 | 2 | 3 | 4 | 38 |
| 40402B2025 | 40402B4025 | 2.5 | 3 | 5 | 38 |
| 40402B2030 | 40402B4030 | 3 | 3 | 6 | 38 |
| 40402B2040 | 40402B4040 | 4 | 4 | 8 | 50 |
| 40402B2050 | 40402B4050 | 5 | 5 | 10 | 50 |
| 40402B2060 | 40402B4060 | 6 | 6 | 12 | 50 |
| 40402B2080 | 40402B4080 | 8 | 8 | 15 | 60 |
| 40402B2100 | 40402B4100 | 10 | 10 | 20 | 75 |
| 40402B2120 | 40402B4120 | 12 | 12 | 20 | 75 |
| 40402B2140 | 40402B4140 | 14 | 14 | 25 | 90 |
| 40402B2160 | 40402B4160 | 16 | 16 | 25 | 100 |
| 40402B2180 | 40402B4180 | 18 | 18 | 30 | 100 |
| 40402B2200 | 40402B4200 | 20 | 20 | 30 | 100 |
