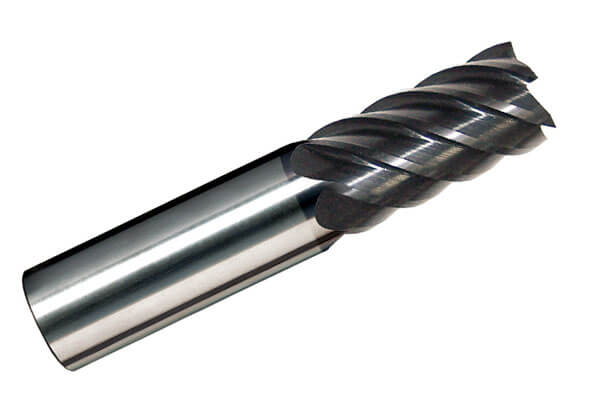

4 (6)Flute End Mills For High Hardness Cutting Extended type

Home > Products > Drill Bits > Solid Carbide End Mills > SKU#: 40402CL

SKU#: 40402CL

Excellent performance in high speed machining

Share This Product:

Description

SPECIFICATIONS:

4 (6)Flute End Mills For High Hardness Cutting Extended type

1. Cobalt: 8% ---> Carbide ( Particle 0.2-0.4um );
2. Cutting Object: HRC>60;
1. Cobalt: 12% ---> Carbide ( Particle 0.4-0.6um );
2. Cutting Object: HRC53-58;
3. With TiALN Coating or Non-Coating;
4. Excellent performance in high speed machining;
5. Helix: 45°, Shank: h6

Extended type

4 Flutes	6 Flutes	Diameter (D)	Shank (d)	Flute length (l)	Allover length(L)
40402C4030L	40402C6030L	3	3	15	60
40402C4040L	40402C6040L	4	4	20	80
40402C4050L	40402C6050L	5	5	25	80
40402C4060L	40402C6060L	6	6	25	80
40402C4080L	40402C6080L	8	8	35	90
40402C4100L	40402C6100L	10	10	45	100
40402C4120L	40402C6120L	12	12	50	100
40402C4160L	40402C6160L	16	16	65	150
40402C4200L	40402C6200L	20	20	70	150

DIN Standard

4 Flutes	6 Flutes	Diameter (D)	Shank (d)	Flute length (l)	Allover length(L)
40403C4030	40403C6030	3	6	8	57
40403C4040	40403C6040	4	6	11	57
40403C4050	40403C6050	5	6	13	57
40403C4060	40403C6060	6	6	13	57
40403C4080	40403C6080	8	8	19	63
40403C4100	40403C6100	10	10	22	72
40403C4120	40403C6120	12	12	26	83
40403C4140	40403C6140	14	14	26	83
40403C4160	40403C6160	16	16	32	92
40403C4180	40403C6180	18	18	32	92

ANSI Standard

4 Flutes	Diameter (D)	Shank (d)	Flute length (l)	Allover length(L)
40404C4--1/8	1/8	1/8	1/2	1-1/2
40404C4--3/16	3/16	3/16	9/16	2
40404C4--1/4	1/4	1/4	3/4	2-1/2
40404C4--3/8	3/8	3/8	1	2-1/2
40404C4--1/2	1/2	1/2	1-1/4	3
40404C4--5/8	5/8	5/8	1-5/8	3-1/2
40404C4--3/4	3/4	3/4	1-5/8	4
40404C4--1	1	1	2	4

6 Flutes	Diameter (D)	Shank (d)	Flute length (l)	Allover length(L)
40404C4--3/8	3/8	3/8	2	4
40404C4--1/2	1/2	1/2	2	4
40404C4--5/8	5/8	5/8	2-1/2	5
40404C4--3/4	3/4	3/4	2-1/2	5
40404C4--1	1	1	2-1/2	5
