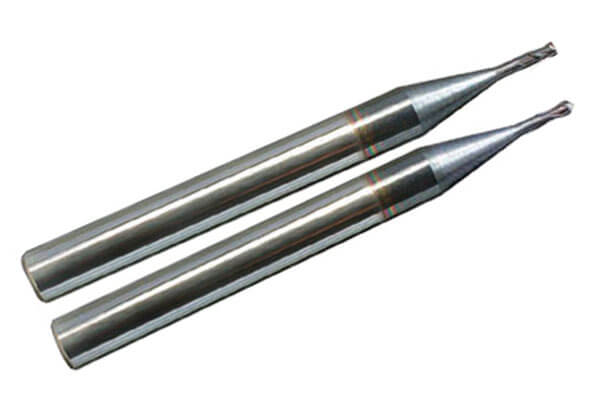

2 Flute d4 Shank Solid Carbide End Mills For Graphite Cutting

Home > Products > Drill Bits > Solid Carbide End Mills > SKU#: 40402I

SKU#: 40402I

Excellent performance in high speed machining

Share This Product:

Description

SPECIFICATIONS:

2 Flute d4 Shank Solid Carbide End Mills For Graphite Cutting

1. Cobalt 12%---> Carbide ( Particle 0.4-0.6um );
2. Cutting Object: HRC53-58;
3. Helix: 30°, Shank: h6;
4. With TiALN Coating or Non-Coating;
5. Excellent performance in high speed machining;

Art Number	Dia （D）	Flute Length（l）	Available Length (l1)	Neck (U/C)	Overall Length (L)
40402I2004-02	0.4	0.6	2	0.38	45
40402I2004-04	0.4	0.6	4	0.38	45
40402I2005-02	0.5	0.7	2	0.48	45
40402I2005-04	0.5	0.7	4	0.48	45
40402I2005-06	0.5	0.7	6	0.48	45
40402I2006-04	0.6	0.9	4	0.57	45
40402I2006-06	0.6	0.9	6	0.57	45
40402I2006-08	0.6	0.9	8	0.57	45
40402I2008-06	0.8	1.2	6	0.76	45
40402I2008-08	0.8	1.2	8	0.76	45
40402I2008-10	0.8	1.2	10	0.76	45
40402I2010-06	1	1.5	6	0.95	45
40402I2010-08	1	1.5	8	0.95	45
40402I2010-10	1	1.5	10	0.95	45
40402I2010-12	1	1.5	12	0.95	45
40402I2012-06	1.2	1.8	6	1.15	45
40402I2012-08	1.2	1.8	8	1.15	45
40402I2012-10	1.2	1.8	10	1.15	45
40402I2014-08	1.4	2.1	8	1.35	45
40402I2014-10	1.4	2.1	10	1.35	45
40402I2014-12	1.4	2.1	12	1.35	45
40402I2015-06	1.5	2.3	6	1.45	45
40402I2015-08	1.5	2.3	8	1.45	45
40402I2015-10	1.5	2.3	10	1.45	45
40402I2015-12	1.5	2.3	12	1.45	45
40402I2015-16	1.5	2.3	16	1.45	45
40402I2016-10	1.6	2.4	10	1.55	45
40402I2016-12	1.6	2.4	12	1.55	45
40402I2016-16	1.6	2.4	16	1.55	45
40402I2018-10	1.8	2.7	10	1.75	45
40402I2018-12	1.8	2.7	12	1.75	45
40402I2018-16	1.8	2.7	16	1.75	45
40402I2020-08	2	3	8	1.9	45
40402I2020-10	2	3	10	1.9	45
40402I2020-12	2	3	12	1.9	45
40402I2020-14	2	3	14	1.9	45
40402I2020-20	2	3	20	1.9	45
40402I2022-20	2.2	3.3	20	2.1	45
40402I2025-20	2.5	3.8	20	2.1	45

2 Flute d4 Shank Ball Nose End Mills For Graphite Cutting

Art Number	Dia （D）	Flute Length（l）	Available Length (l1)	Neck (U/C)	Overall Length (L)
40402J2004-02	0.4	0.6	2	0.38	45
40402J2004-04	0.4	0.6	4	0.38	45
40402J2005-02	0.5	0.7	2	0.48	45
40402J2005-04	0.5	0.7	4	0.48	45
40402J2005-06	0.5	0.7	6	0.48	45
40402J2006-04	0.6	0.9	4	0.57	45
40402J2006-06	0.6	0.9	6	0.57	45
40402J2006-08	0.6	0.9	8	0.57	45
40402J2008-06	0.8	1.2	6	0.76	45
40402J2008-08	0.8	1.2	8	0.76	45
40402J2008-10	0.8	1.2	10	0.76	45
40402J2010-06	1	1.5	6	0.95	45
40402J2010-08	1	1.5	8	0.95	45
40402J2010-10	1	1.5	10	0.95	45
40402J2010-12	1	1.5	12	0.95	45
40402J2012-06	1.2	1.8	6	1.15	45
40402J2012-08	1.2	1.8	8	1.15	45
40402J2012-10	1.2	1.8	10	1.15	45
40402J2014-08	1.4	2.1	8	1.35	45
40402J2014-10	1.4	2.1	10	1.35	45
40402J2014-12	1.4	2.1	12	1.35	45
40402J2015-06	1.5	2.3	6	1.45	45
40402J2015-08	1.5	2.3	8	1.45	45
40402J2015-10	1.5	2.3	10	1.45	45
40402J2015-12	1.5	2.3	12	1.45	45
40402J2015-16	1.5	2.3	16	1.45	45
40402J2016-10	1.6	2.4	10	1.55	45
40402J2016-12	1.6	2.4	12	1.55	45
40402J2016-16	1.6	2.4	16	1.55	45
40402J2018-10	1.8	2.7	10	1.75	45
40402J2018-12	1.8	2.7	12	1.75	45
40402J2018-16	1.8	2.7	16	1.75	45
40402J2020-08	2	3	8	1.9	45
40402J2020-10	2	3	10	1.9	45
40402J2020-12	2	3	12	1.9	45
40402J2020-14	2	3	14	1.9	45
40402J2020-20	2	3	20	1.9	45
40402J2022-20	2.2	3.3	20	2.1	45
40402J2025-20	2.5	3.8	20	2.1	45
