SKU#: 40402K

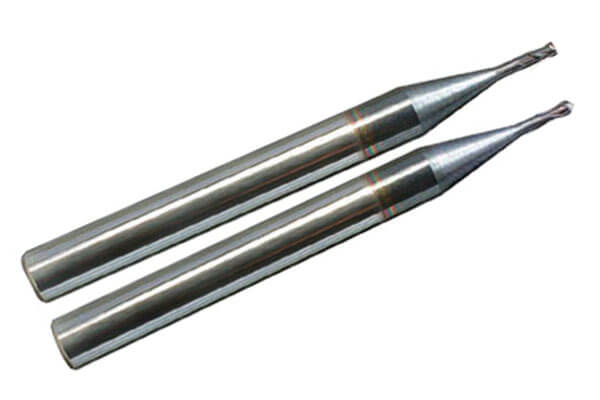

d6 Shank Solid Carbide End Mills
Excellent performance in high speed machining
SPECIFICATIONS:
d6 Shank Solid Carbide End Mills
1. Cobalt 12%---> Carbide ( Particle 0.2-0.4um);
2. Cutting Object: HRC53-58;
3. Helix: 30°, Shank: h6;
4. With TiALN Coating or Non-Coating;
5. Excellent performance in high speed machining;
| 2 Flutes | Diameter (D) | Shank (d) | l | l1 | U/C |
| 40402K2025-12 | 2.5 | 6 | 3.8 | 12 | 2.4 |
| 40402K2025-16 | 2.5 | 6 | 3.8 | 16 | 2.4 |
| 40402K2025-20 | 2.5 | 6 | 3.8 | 20 | 2.4 |
| 40402K2030-12 | 3 | 6 | 4.5 | 12 | 2.85 |
| 40402K2030-16 | 3 | 6 | 4.5 | 16 | 2.85 |
| 40402K2030-20 | 3 | 6 | 4.5 | 20 | 2.85 |
| 40402K2035-12 | 3.5 | 6 | 5.2 | 12 | 3.3 |
| 40402K2035-16 | 3.5 | 6 | 5.2 | 16 | 3.3 |
| 40402K2035-20 | 3.5 | 6 | 5.2 | 20 | 3.3 |
| 40402K2040-12 | 4 | 6 | 6 | 12 | 3.8 |
| 40402K2040-16 | 4 | 6 | 6 | 16 | 3.8 |
| 40402K2040-20 | 4 | 6 | 6 | 20 | 3.8 |
d6 Shank Solid Carbide Ball Nose End Mills
| 2 Flutes | Diameter (D) | Shank (d) | l | l1 | U/C |
| 40402L2025-12 | 2.5 | 6 | 3.8 | 12 | 2.4 |
| 40402L2025-16 | 2.5 | 6 | 3.8 | 16 | 2.4 |
| 40402L2025-20 | 2.5 | 6 | 3.8 | 20 | 2.4 |
| 40402L2030-12 | 3 | 6 | 4.5 | 12 | 2.85 |
| 40402L2030-16 | 3 | 6 | 4.5 | 16 | 2.85 |
| 40402L2030-20 | 3 | 6 | 4.5 | 20 | 2.85 |
| 40402L2035-12 | 3.5 | 6 | 5.2 | 12 | 3.3 |
| 40402L2035-16 | 3.5 | 6 | 5.2 | 16 | 3.3 |
| 40402L2035-20 | 3.5 | 6 | 5.2 | 20 | 3.3 |
| 40402L2040-12 | 4 | 6 | 6 | 12 | 3.8 |
| 40402L2040-16 | 4 | 6 | 6 | 16 | 3.8 |
| 40402L2040-20 | 4 | 6 | 6 | 20 | 3.8 |
