SKU#: 40402P

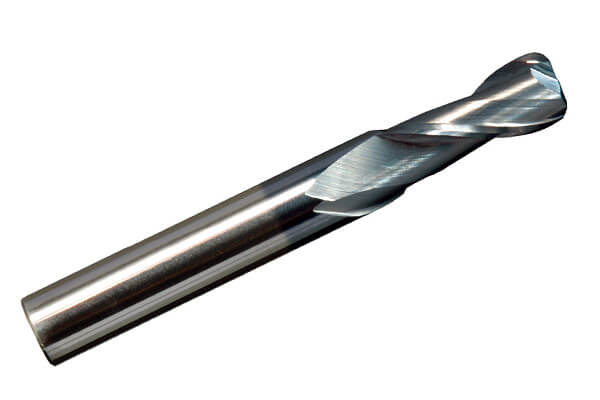

Solid Carbide End Mills With Corner Radius
Excellent performance in high speed machining
SPECIFICATIONS:
Solid Carbide End Mills With Corner Radius
1. Cobalt 10%---> Carbide ( Particle 0.6um );
2. Cutting Object: HRC<45;
1. Cobalt 12%---> Carbide ( Particle 0.4-0.6um );
2. Cutting Object: HRC53-58;
3. Helix: 30°, Shank: h6;
4. With TiALN Coating or Non-Coating;
5. Excellent performance in high speed machining;
| 2 Flutes | 4 Flutes | Dia （D） | Shank Dia （d） | Corner Radius （R） | Flute Length (l）) | Overall Length (L) |
| 40402P2030-r05 | 40402P4030-r05 | 3 | 3 | 0.5 | 8 | 38 |
| 40402P2030-r10 | 40402P4030-r10 | 3 | 3 | 1 | 8 | 38 |
| 40402P2040-r05 | 40402P4040-r05 | 4 | 4 | 0.5 | 11 | 50 |
| 40402P2040-r10 | 40402P4040-r10 | 4 | 4 | 1 | 11 | 50 |
| 40402P2060-r05 | 40402P4060-r05 | 6 | 6 | 0.5 | 16 | 50 |
| 40402P2060-r10 | 40402P4060-r10 | 6 | 6 | 1 | 16 | 50 |
| 40402P2060-r15 | 40402P4060-r15 | 6 | 6 | 1.5 | 16 | 50 |
| 40402P2060-r20 | 40402P4060-r20 | 6 | 6 | 2 | 16 | 50 |
| 40402P2080-r05 | 40402P4080-r05 | 8 | 8 | 0.5 | 19 | 60 |
| 40402P2080-r10 | 40402P4080-r10 | 8 | 8 | 1 | 19 | 60 |
| 40402P2080-r15 | 40402P4080-r15 | 8 | 8 | 1.5 | 19 | 60 |
| 40402P2080-r20 | 40402P4080-r20 | 8 | 8 | 2 | 19 | 60 |
| 40402P2080-r30 | 40402P4080-r30 | 8 | 8 | 3 | 19 | 60 |
| 40402P2100-r05 | 40402P4100-r05 | 10 | 10 | 0.5 | 22 | 75 |
| 40402P2100-r10 | 40402P4100-r10 | 10 | 10 | 1 | 22 | 75 |
| 40402P2100-r15 | 40402P4100-r15 | 10 | 10 | 1.5 | 22 | 75 |
| 40402P2100-r20 | 40402P4100-r20 | 10 | 10 | 2 | 22 | 75 |
| 40402P2100-r30 | 40402P4100-r30 | 10 | 10 | 3 | 22 | 75 |
| 40402P2120-r05 | 40402P4120-r05 | 12 | 12 | 0.5 | 26 | 75 |
| 40402P2120-r10 | 40402P4120-r10 | 12 | 12 | 1 | 26 | 75 |
| 40402P2120-r20 | 40402P4120-r20 | 12 | 12 | 2 | 26 | 75 |
| 40402P2120-r30 | 40402P4120-r30 | 12 | 12 | 3 | 26 | 75 |
| 40402P2160-r05 | 40402P4160-r05 | 16 | 16 | 0.5 | 32 | 100 |
| 40402P2160-r10 | 40402P4160-r10 | 16 | 16 | 1 | 32 | 100 |
| 40402P2160-r20 | 40402P4160-r20 | 16 | 16 | 2 | 32 | 100 |
| 40402P2160-r30 | 40402P4160-r30 | 16 | 16 | 3 | 32 | 100 |
