SKU#: 40402R

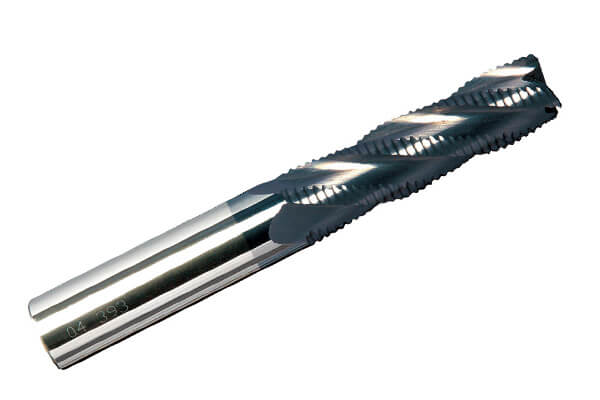

Solid Carbide Roughing End Mills
Excellent performance in high speed machining
SPECIFICATIONS:
Solid Carbide Roughing End Mills
1. Cobalt 12%---> Carbide ( Particle 0.2-0.4um );
2. Cutting Object: HRC53-58;
3. Helix: 30°, Shank: h6;
4. With TiALN Coating or Non-Coating;
5. Excellent performance in high speed machining;
| 3 Flute | 4 Flute | Dia (D) | Shank (d) | Flute Length (l) | Allover Length (L) |
| 40402R3060 | 40402R4060 | 6 | 6 | 16 | 50 |
| 40402R3080 | 40402R4080 | 8 | 8 | 19 | 60 |
| 40402R3100 | 40402R4100 | 10 | 10 | 22 | 75 |
| 40402R3120 | 40402R4120 | 12 | 12 | 26 | 75 |
| 40402R3140 | 40402R4140 | 14 | 14 | 30 | 90 |
| 40402R3160 | 40402R4160 | 16 | 16 | 32 | 100 |
| 40402R3180 | 40402R4180 | 18 | 18 | 38 | 100 |
| 40402R3200 | 40402R4200 | 20 | 20 | 38 | 100 |
Extended Length
| 3 Flute | 4 Flute | Dia (D) | Shank (d) | Flute Length (l) | Allover Length (L) |
| 40402R3060L | 40402R4060L | 6 | 6 | 25 | 80 |
| 40402R3080L | 40402R4080L | 8 | 8 | 35 | 90 |
| 40402R3100L | 40402R4100L | 10 | 10 | 45 | 100 |
| 40402R3120L | 40402R4120L | 12 | 12 | 50 | 100 |
| 40402R3160L | 40402R4160L | 16 | 16 | 65 | 150 |
| 40402R3200L | 40402R4200L | 20 | 20 | 70 | 150 |
