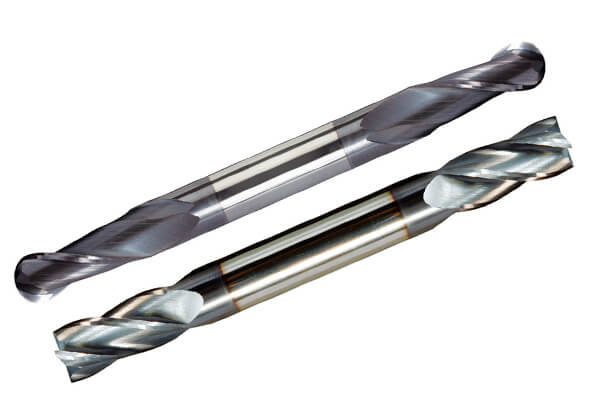

Solid Carbide Double End Mills

Home > Products > Drill Bits > Solid Carbide End Mills > SKU#: 40402S

SKU#: 40402S

Excellent performance in high speed machining

Share This Product:

Description

SPECIFICATIONS:

Solid Carbide Double End Mills

1. Cobalt 12%---> Carbide ( Particle 0.2-0.4um );
2. Cutting Object: HRC53-58;
3. Helix: 30°, Shank: h6;
4. With TiALN Coating or Non-Coating;
5. Excellent performance in high speed machining;

2 Flute	4 Flute	Dia (D)	Shank (d)	Flute Length (l)	Allover Length (L)
40402S2--1/32	40402S4--1/32	1/32	1/8	3/32	1-1/2
40402S2--3/64	40402S4--3/64	3/64	1/8	1/8	1-1/2
40402S2--1/16	40402S4--1/16	1/16	1/8	1/8	1-1/2
40402S2--5/64	40402S4--5/64	5/64	1/8	1/8	1-1/2
40402S2--3/32	40402S4--3/32	3/32	1/8	3/16	1-1/2
40402S2--7/64	40402S4--7/64	7/64	1/8	3/16	1-1/2
40402S2--1/8	40402S4--1/8	1/8	1/8	1/4	1-1/2
40402S2--9/64	40402S4--9/64	9/64	3/16	5/16	2
40402S2--5/32	40402S4--5/32	5/32	3/16	5/16	2
40402S2--11/64	40402S4--11/64	11/64	3/16	5/16	2
40402S2--3/16	40402S4--3/16	3/16	3/16	3/8	2
40402S2--13/64	40402S4--13/64	13/64	1/4	1/2	2-1/2
40402S2--7/32	40402S4--7/32	7/32	1/4	1/2	2-1/2
40402S2--15/64	40402S4--15/64	15/64	1/4	1/2	2-1/2
40402S2--1/4	40402S4--1/4	1/4	1/4	1/2	2-1/2
40402S2--9/32	40402S4--9/32	9/32	5/16	1/2	2-1/2
40402S2--5/16	40402S4--5/16	5/16	5/16	1/2	2-1/2
40402S2--3/8	40402S4--3/8	3/8	3/8	9/16	2-1/2
40402S2--7/16	40402S4--7/16	7/16	7/16	5/8	2-3/4
40402S2--1/2	40402S4--1/2	1/2	1/2	5/8	3

Extended LengthSolid Carbide Double Ball Nose End Mills

2 Flute	4 Flute	Dia (D)	Shank (d)	Flute Length (l)	Allover Length (L)
40402T2--1/32	40402T4--1/32	1/32	1/8	3/32	1-1/2
40402T2--3/64	40402T4--3/64	3/64	1/8	1/8	1-1/2
40402T2--1/16	40402T4--1/16	1/16	1/8	1/8	1-1/2
40402T2--5/64	40402T4--5/64	5/64	1/8	1/8	1-1/2
40402T2--3/32	40402T4--3/32	3/32	1/8	3/16	1-1/2
40402T2--7/64	40402T4--7/64	7/64	1/8	3/16	1-1/2
40402T2--1/8	40402T4--1/8	1/8	1/8	1/4	1-1/2
40402T2--9/64	40402T4--9/64	9/64	3/16	5/16	2
40402T2--5/32	40402T4--5/32	5/32	3/16	5/16	2
40402T2--11/64	40402T4--11/64	11/64	3/16	5/16	2
40402T2--3/16	40402T4--3/16	3/16	3/16	3/8	2
40402T2--13/64	40402T4--13/64	13/64	1/4	1/2	2-1/2
40402T2--7/32	40402T4--7/32	7/32	1/4	1/2	2-1/2
40402T2--15/64	40402T4--15/64	15/64	1/4	1/2	2-1/2
40402T2--1/4	40402T4--1/4	1/4	1/4	1/2	2-1/2
40402T2--9/32	40402T4--9/32	9/32	5/16	1/2	2-1/2
40402T2--5/16	40402T4--5/16	5/16	5/16	1/2	2-1/2
40402T2--3/8	40402T4--3/8	3/8	3/8	9/16	2-1/2
40402T2--7/16	40402T4--7/16	7/16	7/16	5/8	2-3/4
40402T2--1/2	40402T4--1/2	1/2	1/2	5/8	3
